The Comprehensive Guide To Masonry Veneer Siding In 2026
Masonry veneer siding offers the timeless, sophisticated aesthetic of traditional brick, stone, or block construction while utilizing a lightweight, highly efficient installation method suited for modern residential and commercial architecture.
Understanding the Engineering and Composition of Masonry Veneer Systems
Modern masonry veneer siding differs fundamentally from structural, load-bearing masonry walls. While traditional brick or stone walls support their own weight and structural loads, a masonry veneer system acts as an exterior cosmetic and protective skin. It is tied back to a wood-frame or steel-stud structural backing using corrosion-resistant metal ties.
The system relies on a multi-layer assembly designed to manage moisture, thermal expansion, and wind loads. The components work in unison to protect the building envelope:
- Structural Backing: Wood studs or steel studs providing the primary structural integrity of the wall assembly.
- Sheathing: Exterior-grade plywood or oriented strand board (OSB) providing rigid surface stability.
- Water-Resistive Barrier (WRB): Multiple layers of weather-resistant paper or fluid-applied membranes designed to shed incidental moisture.
- Drainage Cavity: An engineered air gap (typically 1 inch or less) or a specialized drainage mat that allows water penetrating the veneer to escape safely via weep holes.
- Veneer Units: The actual manufactured stone, natural thin stone, or thin brick units adhered or anchored to the exterior wall.
The Role of Cavity Ventilation and Flashing
A critical factor in the longevity of masonry veneer installations is moisture mitigation. Industry standards require continuous ventilation and proper flashing integration. Through-wall flashing must be installed at the base of the wall, above window and door openings, and at roof-wall intersections to intercept downward-moving moisture and direct it outward through weep holes. Neglecting these details frequently leads to efflorescence, freeze-thaw spalling, and premature degradation of the structural fasteners.
Architectural Advantages and Structural Limitations
When evaluating exterior cladding options, architects, builders, and homeowners weigh the structural, aesthetic, and financial impacts of masonry veneers against traditional alternatives like full-depth masonry, vinyl, or fiber cement.
| Performance Metric | Manufactured Stone Veneer | Thin Brick Siding | Fiber Cement Siding | Traditional Full-Depth Brick |
|---|---|---|---|---|
| Installed Weight (per sq. ft.) | 8 to 15 lbs | 6 to 12 lbs | 3 lbs | 40 to 50 lbs |
| Foundation Requirement | Standard wood/steel footing | Standard wood/steel footing | Standard wood/steel footing | Heavy extended concrete foundation |
| Thermal Mass Efficiency | Moderate | Moderate | Low | Very High |
| Average Lifespan (Years) | 50+ | 50+ | 30 to 50 | 100+ |
| Maintenance Intensity | Low (occasional sealing) | Low (mortar joint check) | Moderate (repainting) | Very Low |
Advantages of Choosing Veneer Siding
The primary benefit of masonry veneer is weight reduction. Because these units are significantly thinner and lighter than full-depth bricks or stones, they do not require a poured concrete foundation ledge or shelf for support. This reduces structural engineering costs and simplifies framing requirements. Furthermore, modern manufactured stone and thin brick offer endless design flexibility, matching historical or contemporary aesthetic profiles without the massive labor overhead associated with traditional masonry.
Limitations and Vulnerabilities
Despite their durability, masonry veneer systems demand meticulous installation precision. If moisture breaches the exterior envelope and becomes trapped behind the veneer due to a missing or damaged water-resistive barrier, mold, rot, and structural corrosion can occur silently within the wall cavity. Additionally, while the units themselves resist fire and impact, extreme seismic activity can cause cracking in the mortar joints if expansion joints are improperly spaced.

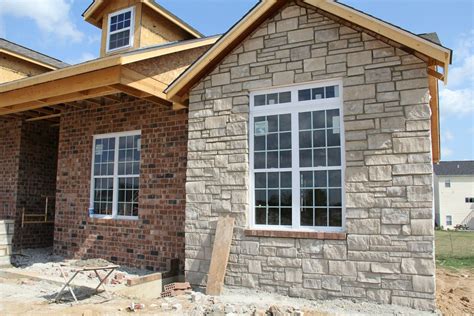

Exterior Veneer Stone Siding : Mortarless Panels & Manufactured Stone ...
Step-by-Step Installation Protocols for 2026
Professional installation of masonry veneer siding requires adherence to strict building codes and manufacturer specifications. Below is the standard protocol utilized by certified installers to ensure a weather-tight, durable finish.
- Surface Preparation and WRB Application: Install two layers of code-compliant water-resistive barrier over the exterior sheathing. Ensure proper shingle-style overlapping (minimum 2 inches horizontally and 6 inches vertically) to direct water downward.
- Lath Installation: Secure corrosion-resistant expanded metal lath or welded wire fabric over the WRB using galvanized fasteners driven directly into the structural studs. The lath must be taut to properly support the scratch coat.
- Applying the Scratch Coat: Trowel a proprietary mortar base coat (scratch coat) entirely over the metal lath, ensuring complete embedding of the wire. While the mortar is still wet, horizontally score the surface with a scarifier to create a mechanical key for the subsequent setting bed. Allow this coat to cure completely.
- Layout and Unit Selection: Dry-lay units on the ground to blend colors, sizes, and textures, preventing visual clustering of identical pieces on the finished wall.
- Adhering the Veneer: Apply a polymer-modified mortar to the back of each unit (buttering) and press it firmly into the scratch coat with a slight twisting motion to force mortar out around the edges, guaranteeing a 100% bond.
- Grouting and Tooling Joints: Once the units are securely set, grout the joints using a grout bag or mortar gun. Allow the mortar to reach a leather-hard consistency before tooling the joints to a concave or recessed profile to shed water effectively.
- Cleanup and Sealing: Brush away excess mortar crumbs and clean the wall using approved mild cleaners. Once fully cured and dry, apply a breathable, siloxane-based masonry sealer if recommended by the manufacturer.
Professional Tip for Installation: Never install masonry veneer in freezing temperatures below 40°F (4°C) without utilizing heated enclosures and anti-freeze admixtures. Freezing mortar prior to complete hydration ruins the chemical bond, resulting in widespread debonding and structural failure down the road.
Cost Analysis, ROI, and Property Value Impacts
Investing in masonry veneer siding represents a substantial upfront capital expenditure, but it yields high long-term returns in curb appeal, energy efficiency, and home valuation.
Average installed costs in 2026 generally range from $12 to $25 per square foot, depending on the complexity of the architectural design, regional labor rates, and the specific material selected (natural thin stone tends to sit at the higher end of the spectrum, while manufactured stone and thin brick are more economical).
Real estate appraisal metrics consistently demonstrate that upgrading exterior siding to stone or brick veneer recoups a high percentage of its initial cost at resale. Unlike organic sidings that fade, warp, or require repainting every five to seven years, masonry veneer maintains its visual appeal with minimal upkeep, making it a strong selling point for prospective buyers prioritizing low-maintenance exteriors.
Frequently Asked Questions About Masonry Veneer Siding
How does masonry veneer siding differ from full-brick construction?
Masonry veneer is a non-structural, lightweight exterior finish anchored to a wood or steel frame, whereas full-brick construction is load-bearing and requires a dedicated concrete foundation ledge to support its immense weight. Full-brick walls are typically double-wythe, while veneer walls are single-wythe.
Can masonry veneer siding be installed over existing wood or vinyl siding?
Installing masonry veneer directly over existing wood or vinyl siding is strongly discouraged and violates most building codes. The existing siding must be stripped down to the sheathing to allow proper installation of water-resistive barriers, metal lath, and drainage cavities.
How do I maintain and clean masonry veneer siding?
Maintenance involves annual inspections of mortar joints, caulking around windows and doors, and checking weep holes to ensure they remain clear of debris. Cleaning can be performed using low-pressure water rinsing and mild dish soap; high-pressure washing should be avoided as it can erode mortar joints.
Does masonry veneer provide good insulation value?
While masonry materials possess thermal mass that helps moderate indoor temperature fluctuations, veneer siding on its own offers relatively low R-value. High energy efficiency is achieved by combining the veneer system with continuous exterior foam insulation board installed behind the structural backing.
What causes efflorescence, and how is it treated?
Efflorescence is a white, powdery salt deposit that appears on the surface of masonry when moisture migrates through the wall, dissolves internal salts, and evaporates on the exterior. It is typically treated using dry brushing or specialized mild masonry cleaners, followed by addressing the source of moisture entry.
Is masonry veneer siding resistant to fire and pests?
Yes, manufactured stone and thin brick are non-combustible materials that achieve high fire resistance ratings. Furthermore, because the system contains no organic wood fibers in the exterior layer, it is completely immune to damage from termites, carpenter ants, and other wood-boring pests.
Conclusion
Masonry veneer siding combines aesthetic elegance with modern engineering, offering a durable, fire-resistant, and visually striking exterior cladding solution. By following strict installation guidelines, ensuring proper moisture management, and maintaining the building envelope, property owners can enjoy decades of architectural beauty and structural peace of mind.
